Flatbed Kit: 2015-2023 Chevy/GMC 3500 Shortbed Dually

$899.00

FREE SHIPPING in lower 48 states!

Required to complete the 2015-2023 Chevy/GMC 3500/4500 Short bed Dually Flatbed. This kit is designed to be used in combination with the start to finish video tutorial (scroll down to watch). Overall bed dimensions are 8 ft wide at the back, 7 ft wide at the front, and 90 inches long.

What the kit includes:

  1. Blueprint with material list, cut instructions, and build diagrams. Blueprints will be downloadable upon purchase. Scroll down for a video preview of the blueprints.
  2. All machine-made Parts. (3 tail pieces, 6 tail gussets, two headache rack gussets, and two light brackets.) Parts will be delivered 3-7 business days after ordering with free shipping in the lower 48. Scroll down for a video explanation.

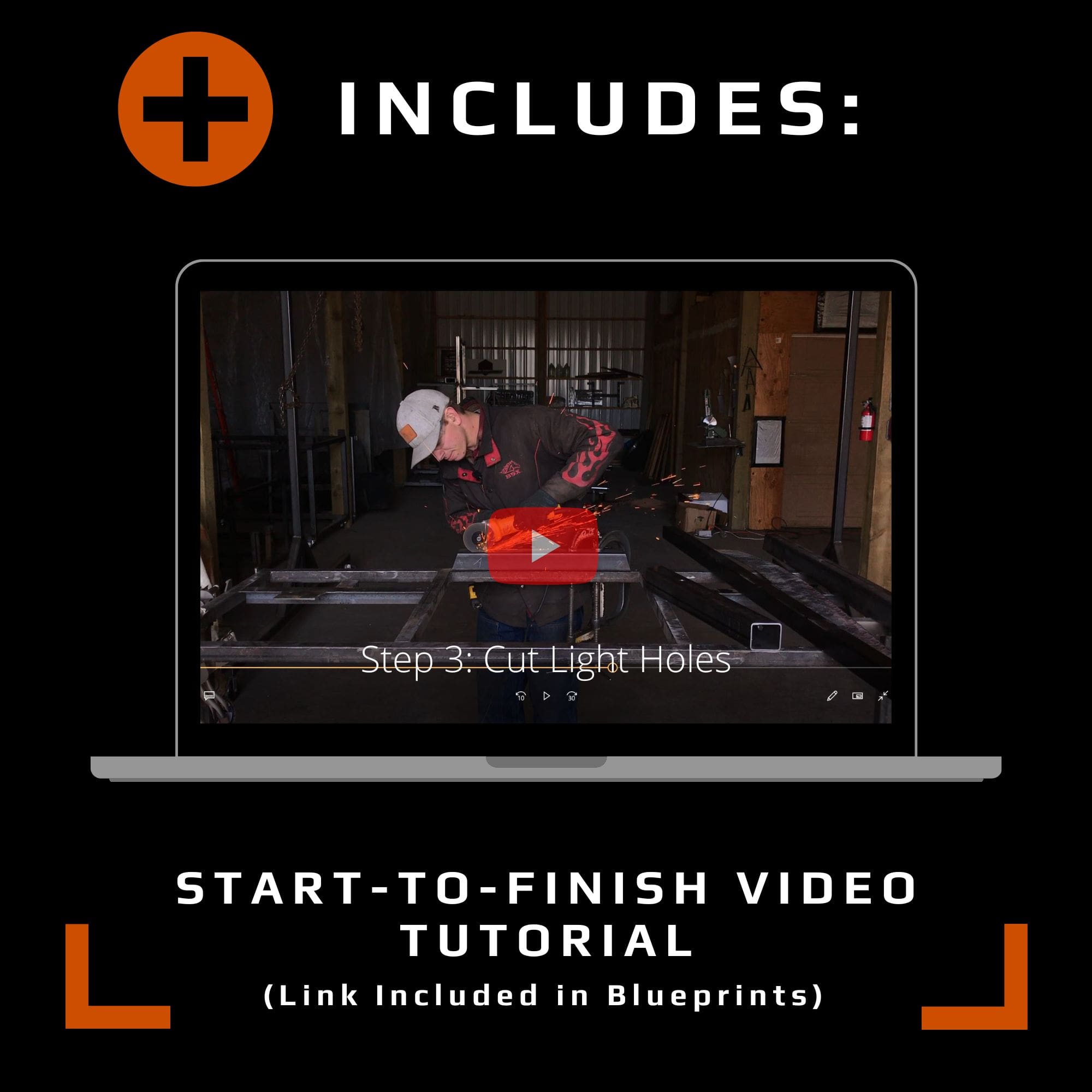

  3. Full access to the start to finish video tutorial on how to build, wire, and install your bed. Scroll down to watch the video tutorial.

Note: this kit does not include all parts needed to complete your flatbed – you will have to purchase all the needed generic steel needed at a local steel dealer. The amount and type of steel you need to purchase is laid out clearly in your model specific blueprint. This kit is simply the machine parts you cannot buy locally. You can download the material list of what you need to source here.

Please choose your fuel type – choose double type if your pickup has D.E.F. in the fuel door, single fuel type if it has only gas or diesel in the fuel door.

Tail pieces and gussets made from 3/16″ thick steel. Light brackets and fuel plate/bezel made from 1/8″ thick steel. All parts are un-coated (raw steel). You will receive your order in 5-10 business days from time of purchase.



SKU: N/A Categories: , , ,

Material List Free Download

  • Generic Steel you'll have to purchase
  • Determine Exact Fnished Product Cost
  • Alternative Steel Type Options
  • Compare Wood vs. Steel Deck Cost

By submitting, you agree to our terms and conditions.

How do our Products Work?

Our 3-Part Kits make your job easy. Check out the videos below for everything you need to know.

1. Video Tutorial

With 28 modules and over 5 hours in length, no detail is left out covering how to build, wire, and install your flatbed.

Preview Video Tutorial

2. Model Specific Blueprints

Watch the following video for an explanation .

3. Machine Made Parts Shipped to You.

Watch the following video for an explanation .

Your Choice

Your Choice

Choose Between a Wood or Steel Deck.

To Build a Steel Deck: Watch modules 5b, 19b, and 20 of the video tutorial.

To Build a Wood Deck: Skip modules 5b, 19b, and 20 of the video tutorial.

"Is this worth it? Why not build my own from scratch?"

Watch this video to decide for yourself.

Read Reviews
Read Reviews

Frequently Asked Questions

Standard Bed Cost List

Standard Kit -$799-929 (Free Shipping)

Generic Steel you will need purchase from a local steel dealer* – ~$700-$1500 Download the Steel List.

Lights/Wiring/Decking – ~$650

Finish (Powercoat/Paint)* – $35 – $650

Total Cost: $2150-$4,000

*Prices are subject to local supplier and serve as an estimate only.

Optional Add-Ons

Underbody Tool Boxes: ~$500

Fender Kit: $199-$229

Our Kits are unconventional in that we don’t send you everything, only the machine made parts that you can’t purchase locally. Why? Because it would be what’s known as a rip-off to charge you for mark up and exorbitant amounts of shipping cost to sell you generic steel that you can buy locally without a middle man. That being said, you’ll be responsible in purchasing the generic steel to make the process as affordable as possible. Download the free material list so you can get an exact cost for everything you’ll need. We’ll still send you the machine made parts and provide you with the blueprints to make the build seamless.

This kit gives you everything you need to seamlessly complete the base model bed. It is designed to be a cheap alternative to pre-made flatbeds.

The kit includes the CNC machine made parts shipped to your door and a model specific blueprint that lays out all of the other steel you need to purchase locally and at what lengths and angles to cut it.  This kit is designed to be used in combination with the video tutorial that is also included.

Experince Needed

Moderate to advanced welding experience is needed to complete this project as well as experience using all shop tools described below.

Tools and Equipment Needed

  1. Ear Plugs
  2. Safety Glasses
  3. Welding Helmet
  4. Welding Gloves
  5. Welding Coat or protective outer layer
  6. Welder – needs to adequately weld 3/16” thick plate
  7. Bandsaw – capable of handling 2.5” square tube (most all small bandsaws)
  8. Angle Grinder
  9. Tape Measure
  10. Vice grips OR C-clamps – 6 total
  11. Square
  12. Drill Press OR Hand Drill
  13. (2) 7/32” Drill Bit
  14. ¾” Drill bit (only if installing marker lights)
  15. Type 27 Flapper disk grinding wheel(s)
  16. Slitter disk(s) OR Plasma Cutter
  17. Metal Pencil or Sharpie Marker
  18. Forklift OR Shop Crane OR 4 Strong people (for installation)

An experienced fabricator can build this project in 30 hours and install in 8 – 10 hours.
